Hot water pump VS 65/150 M
Hot water pump VS 65/150 M
⬤ Out of stock
Shipping options
Store stock information
Sorry, not available at the moment
Hot water pump VS 65/150 M
General specs
- Garums:150
- Grupa:siltumapgāde
- Nominālais izmērs (DN):25
- Spriegums:230v
- Sērija:vs
Specs
- Product code: 60115299/60182213
- Barcode: 8019203444360
- Brand: DAB
0 Reviews
Rating 0You must be logged in to leave a review
Product description

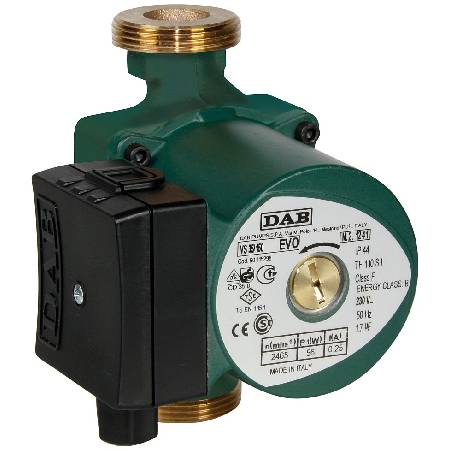

Wet rotor circulator with bronze pump body designed for the circulation of drinkable hot water in residential building service. The motor shaft can be deblock manually. Vent plug. Asynchronous motor with overload protection. Threaded suction and delivery ports.
Flow rate (range): From 0,6 m3/h to 3,7 m3/h
Head: Up to 6 m
Type of pumped liquid: Clean, free from solid substances and mineral oils, not viscous, chemically neutral
Liquid temperature (range): From -10°C to +85°C for drinkable water From -10°C to +110°C for other uses
Operation pressure (maximum): 10 bar / 1000 kPa
Flanging or threading: Thread 1" 1/2
Motor protection class: IP 44
Motor insulation class: F
Impeller material: Technopolymer
Single phase power input: 230 V 50 Hz
Type of installation: Fixed with horizontal motor axis
